• P225/70R15 all-season BSW tires
• 15" 7-spoke silver-painted steel wheels
• Mini spare tire
• Raised "power dome" hood
• Black front/rear step bumper -inc: black painted face bar w/matching lower valance
• Front/rear stone guards
• Black H-bar grille
• Bi-color tail lamps
• Black manual side mirrors
• Solar tinted glass
• Rear window fixed glass
• Variable-intermittent windshield wipers
• Black door handles
• Quick-release tailgate w/black handle

• AM/FM stereo w/clock

• Medium Dark Flint, Cloth 60/40 split bench seat
• Rear jump seats
• Black rugged textured vinyl floor covering
• Black urethane 4-spoke steering wheel
• Black-faced gauge cluster w/black trim rings
• SecuriLock anti-theft system
• Air conditioning
• Glove box
• Cup holders
• Smokers pkg -inc: lighter, ash tray
• 12-volt aux pwr point
• Low series door trim panels
• Manual day/night rearview mirror
• Sun visors w/driver side strap
• Driver/passenger A-pillar-mounted grab handles
• Dome light

• 4-wheel anti-lock brake system (ABS)
• Roll stability control (RSC) w/AdvanceTrac
• Driver & front passenger dual-stage airbags -inc: front passenger sensing system
• Side seat airbags
• Front safety belts -inc: height adjusters, pretensioners, energy management, retractors on outside positions
• Center front lap belt
• Tire pressure monitoring system (TPMS)

4.0L SOHC V6 ENGINE

• 115 amp alternator
• class III trailer tow

• Cloth 60/40 Split Bench Seat
• AM/FM Stereo w/MP3/SAT Capable CD
• 4-Wheel Disc Brakes
• Front beverage holders
• Variably intermittent wipers
• Traction control
• Split folding rear seat
• Rear step bumper
• Power steering
• Occupant sensing airbag
• Low tire pressure warning
• Front wheel independent suspension
• Front anti-roll bar
• Dual front side impact airbags
• Dual front impact airbags
• AM/FM radio
• ABS brakes
• Voltmeter
• Tachometer
• Electronic Stability Control
• Air Conditioning

• Mileage
• Fuel Economy Est-Combined (MPG): 17
• Fuel Economy Est-Combined (MPG): 24
• EPA Fuel Economy Est - City (MPG): 22
• EPA Fuel Economy Est - Hwy (MPG): 27
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 540
• Maximum Alternator Capacity (amps): 110
• Maximum Alternator Capacity (amps): 100
• Maximum Alternator Watts: 1485
• Maximum Alternator Watts: 1350
• Cooling System
• Total Cooling System Capacity (qts): 7.8
• Total Cooling System Capacity (qts): 7.2
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2600
• Gross Axle Wt Rating - Rear (lbs): 2750
• Gross Axle Wt Rating - Rear (lbs): 2600
• Curb Weight - Front (lbs): 2026
• Curb Weight - Front (lbs): 1841
• Curb Weight - Rear (lbs): 1476
• Curb Weight - Rear (lbs): 1461
• Gross Vehicle Weight Rating Cap (lbs): 4760
• Gross Combined Wt Rating (lbs): 4800
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 1340
• Dead Weight Hitch - Max Tongue Wt. (lbs): 134
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 1340
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 201
• Suspension
• Suspension Type - Front: SLA w/Coil Springs
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 2600
• Spring Capacity - Rear (lbs): 2600
• Axle Type - Front: Twin-Forged SLA
• Axle Type - Rear: Ford Semi-Floating
• Axle Capacity - Front (lbs): 2625
• Axle Capacity - Rear (lbs): 2750
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 30.2
• Shock Absorber Diameter - Rear (mm): 30.2
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.28 x 0.39
• Rear Brake Rotor Diam x Thickness (in): 11.85 x 0.39
• Tires
• Front Tire Size: P225/70R15
• Rear Tire Size: P225/70R15
• Spare Tire Size: Mini
• Front Tire Capacity (lbs): 1594
• Rear Tire Capacity (lbs): 1594
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: 765
• Revolutions/Mile @ 45 mph - Rear: 765
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 15 x 7
• Rear Wheel Size (in): 15 x 7
• Spare Wheel Size (in): Mini
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 19.2
• Turning Diameter - Curb to Curb (ft): 42.7
• Turning Diameter - Wall to Wall (ft): 44.6
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 19.5
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 125.7
• Length, Overall w/o rear bumper (in): 203.6
• Width, Max w/o mirrors (in): 69.4
• Height, Overall (in): 66.3
• Overhang, Front (in): 34.0
• Overhang, Rear w/o bumper (in): 44.0
• Front Bumper to Back of Cab (in): 121.6
• Cab to Axle (in): 38.0
• Cab to End of Frame (in): 82
• Ground to Top of Load Floor (in): 29.5
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 32.8
• Ground Clearance, Front (in): 8.6
• Ground Clearance, Rear (in): 8.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 72.7
• Cargo Box Width @ Top, Rear (in): 54.4
• Cargo Box Width @ Floor (in): 54.4
• Cargo Box Width @ Wheelhousings (in): 40.5
• Cargo Box (Area) Height (in): 16.5
• Tailgate Width (in): 52.0
• Cargo Volume (ft³): 37.4
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 39.2
• Front Leg Room (in): 42.4
• Front Shoulder Room (in): 54.5
• Front Hip Room (in): 52.7
• Second Head Room (in): 33.2
• Second Leg Room (in): 39.1
• Second Shoulder Room (in): 14.1
• Second Hip Room (in): 18.7
• Summary

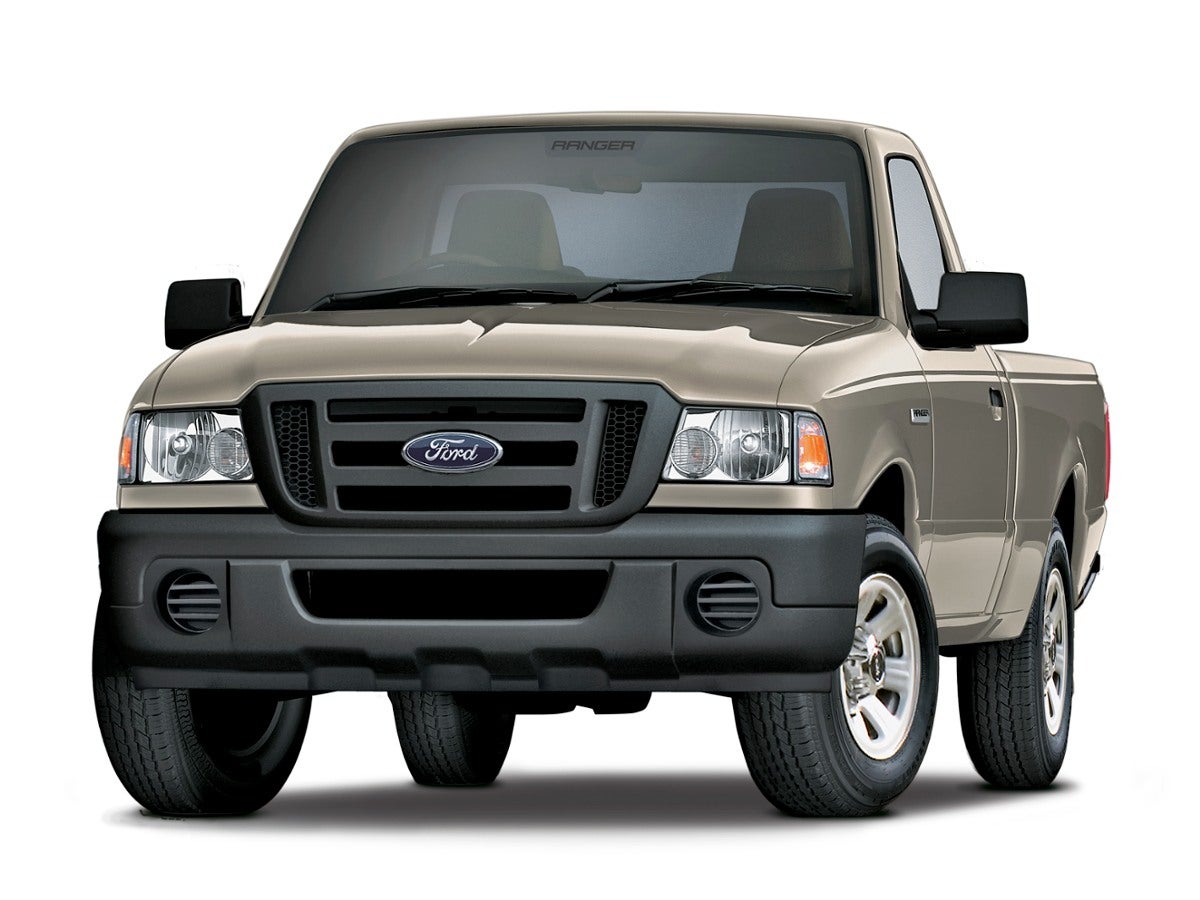

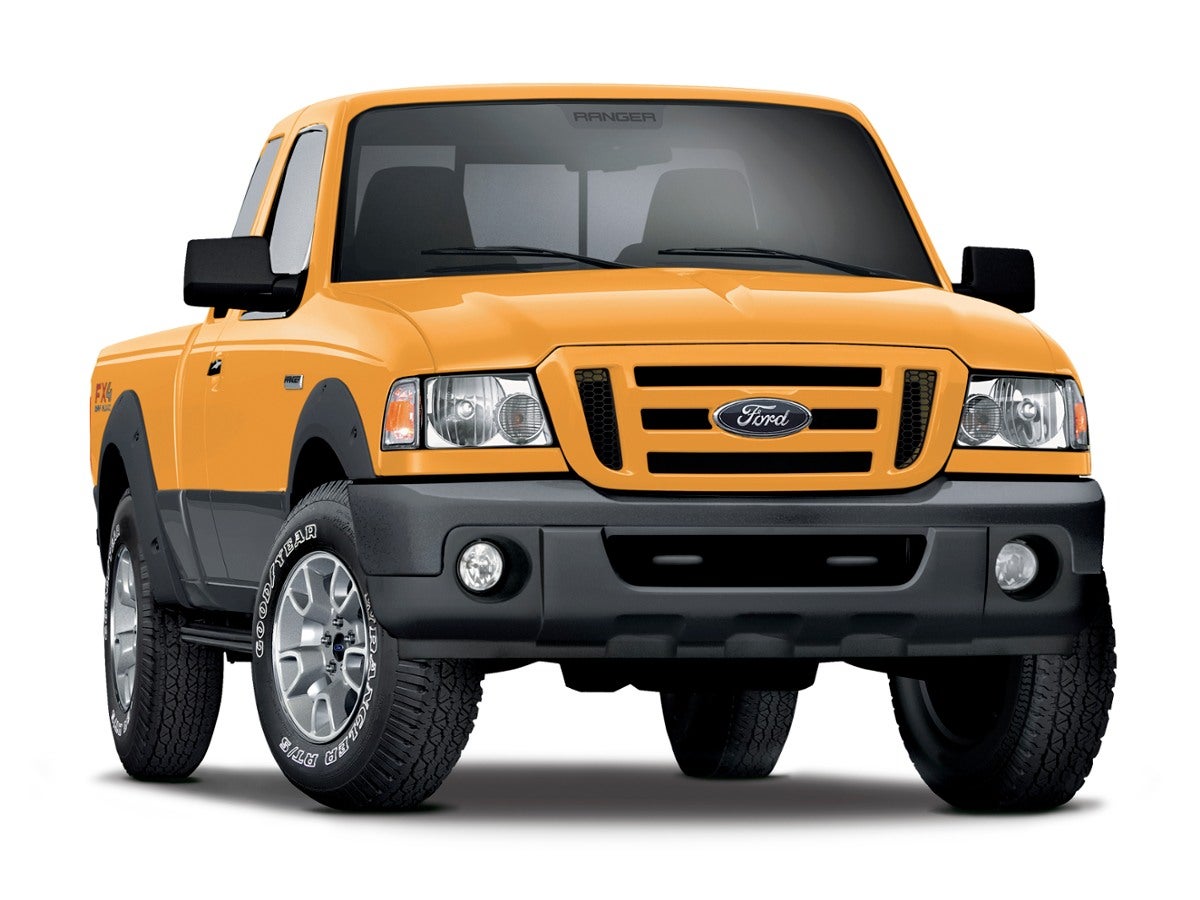

• Vehicle Name: Ford Ranger
• Body Style: Supercab 6' Styleside
• Body Code: 125.7" WB
• Emissions
• EPA Greenhouse Gas Score: 5
• Tons/yr of CO2 Emissions @ 15K mi/year: 7.8
